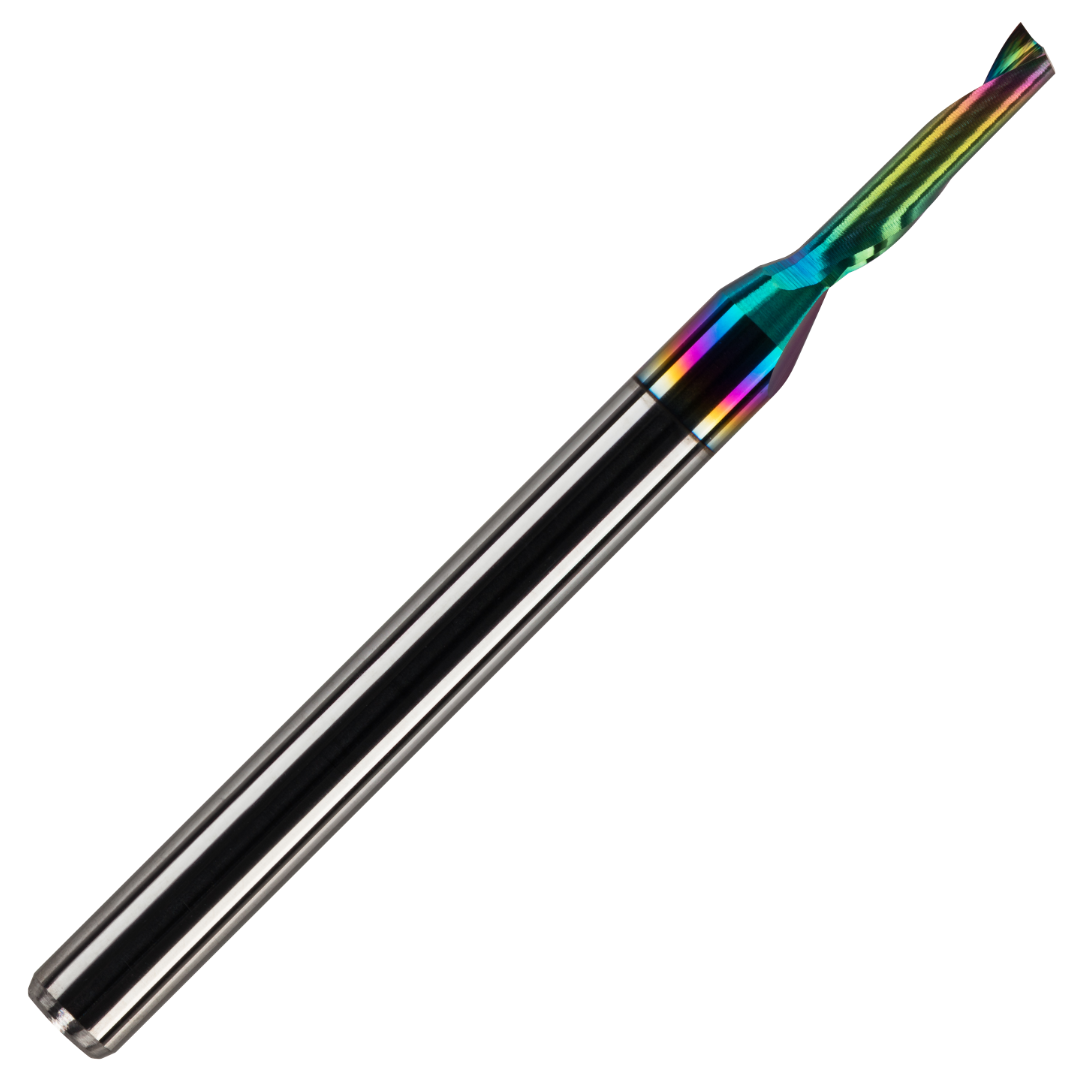

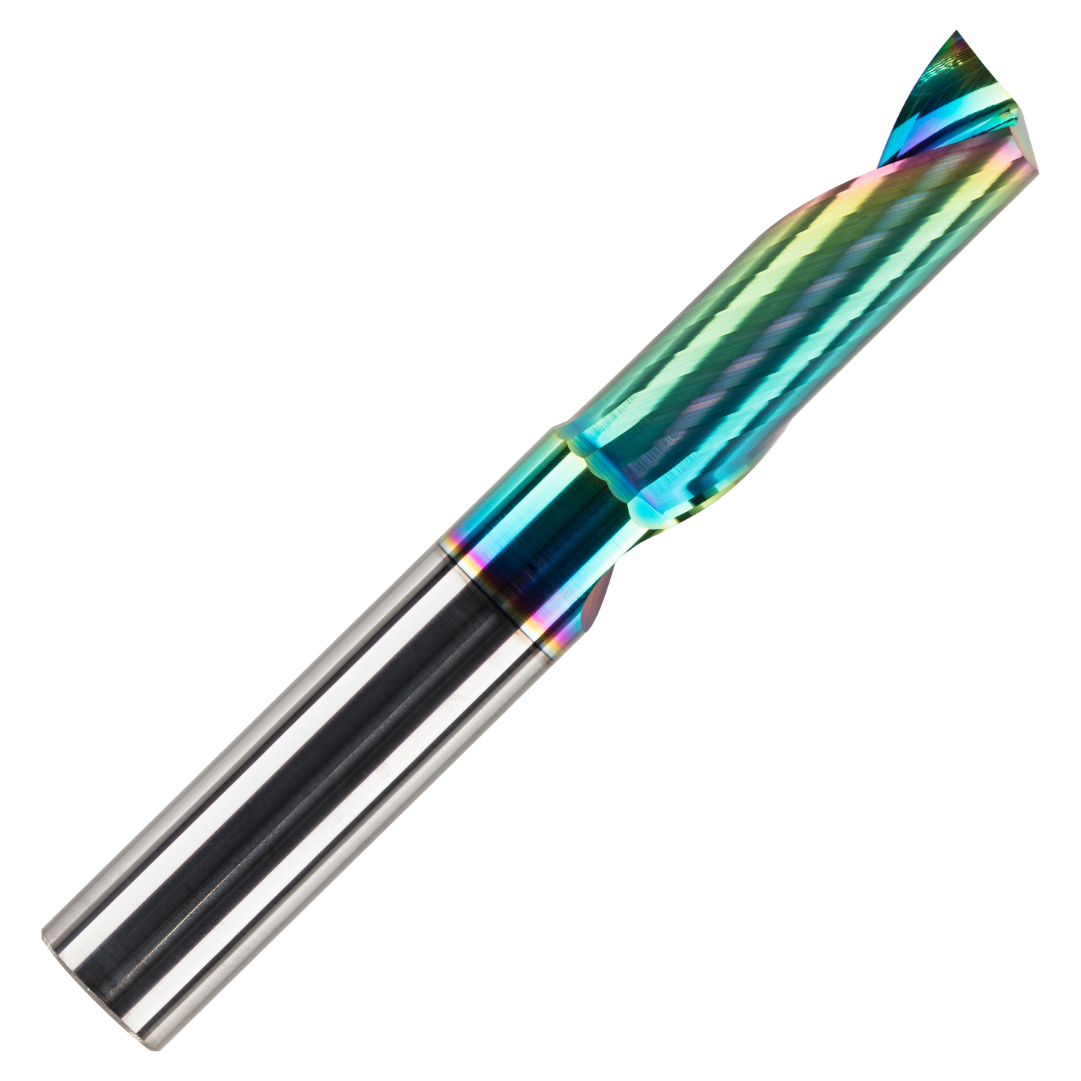

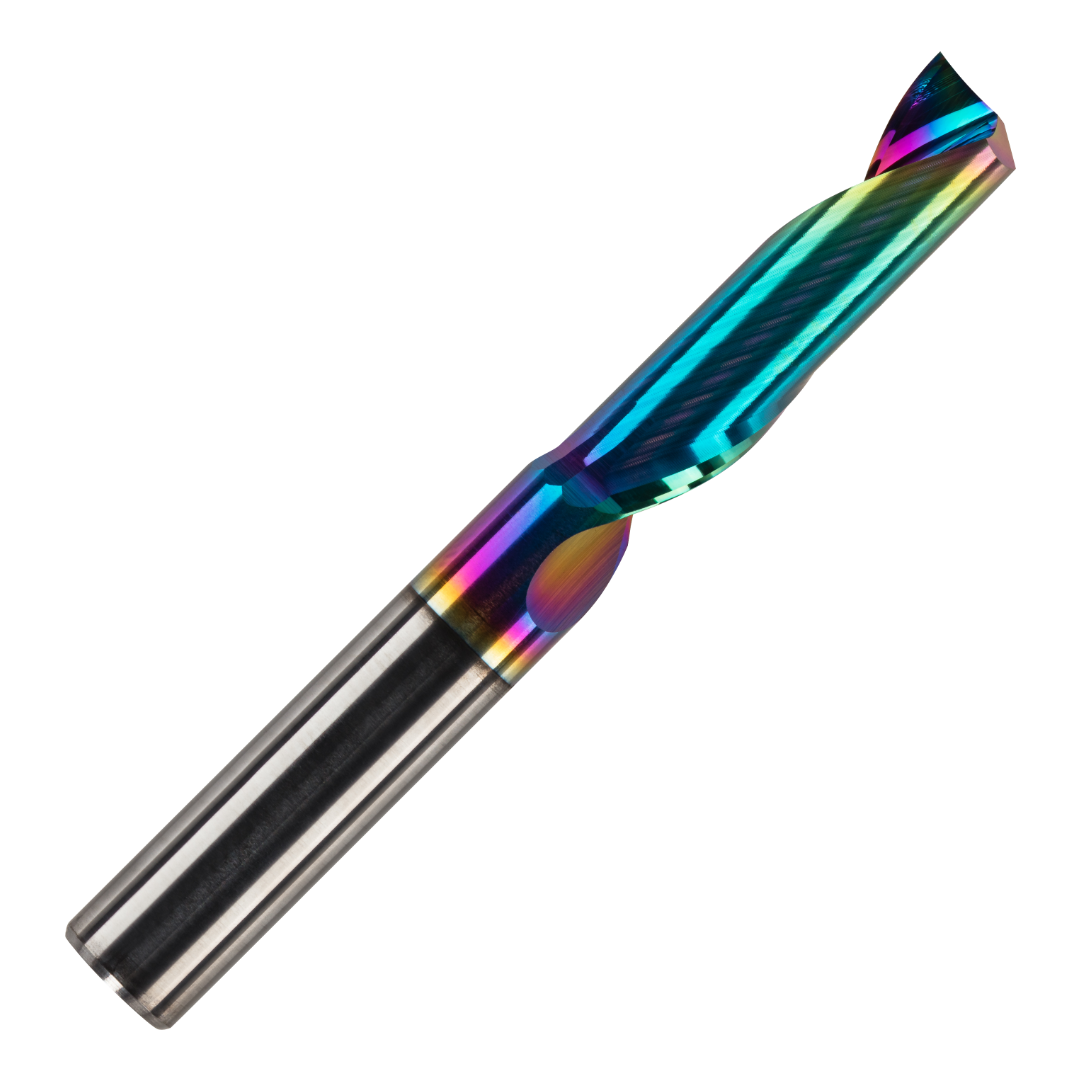

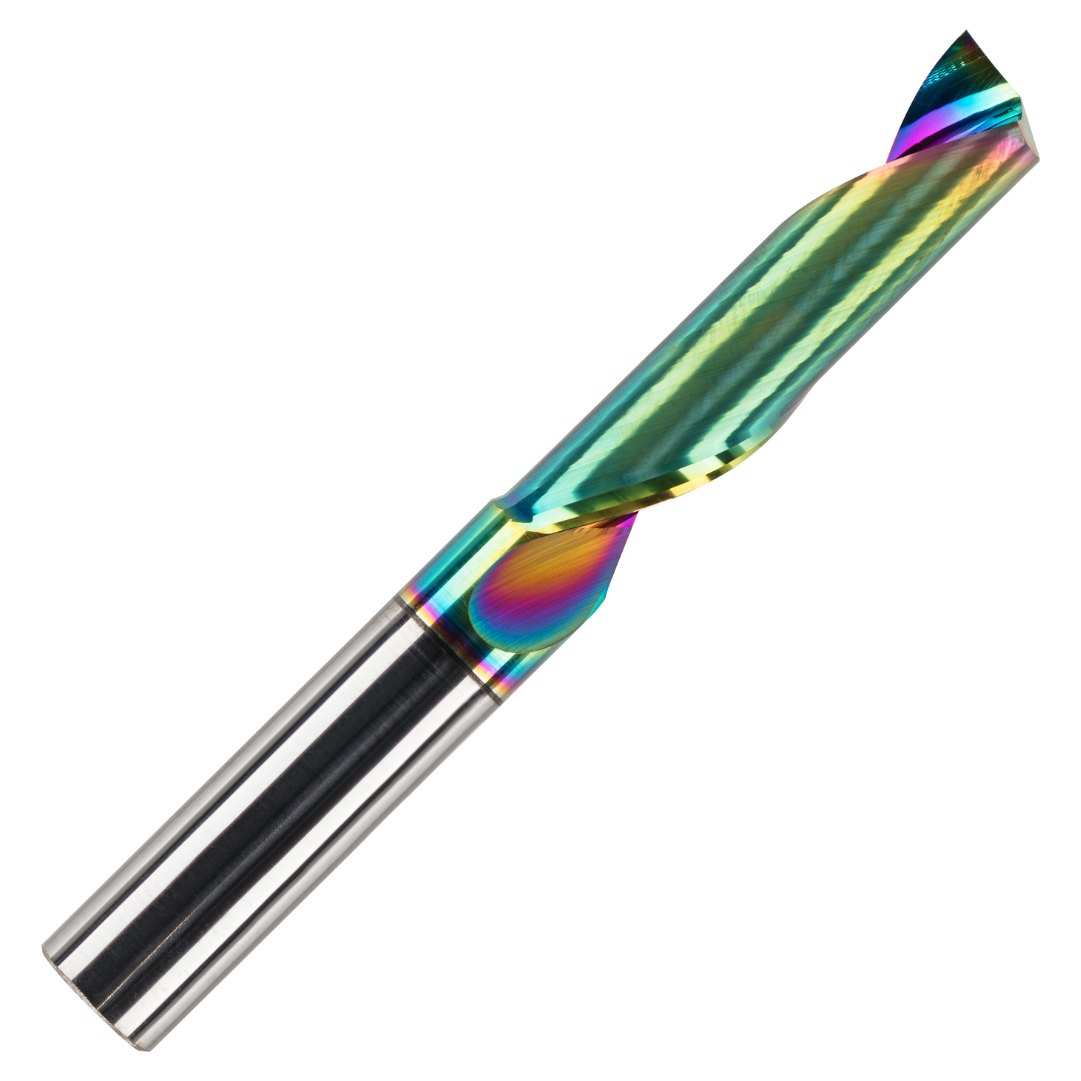

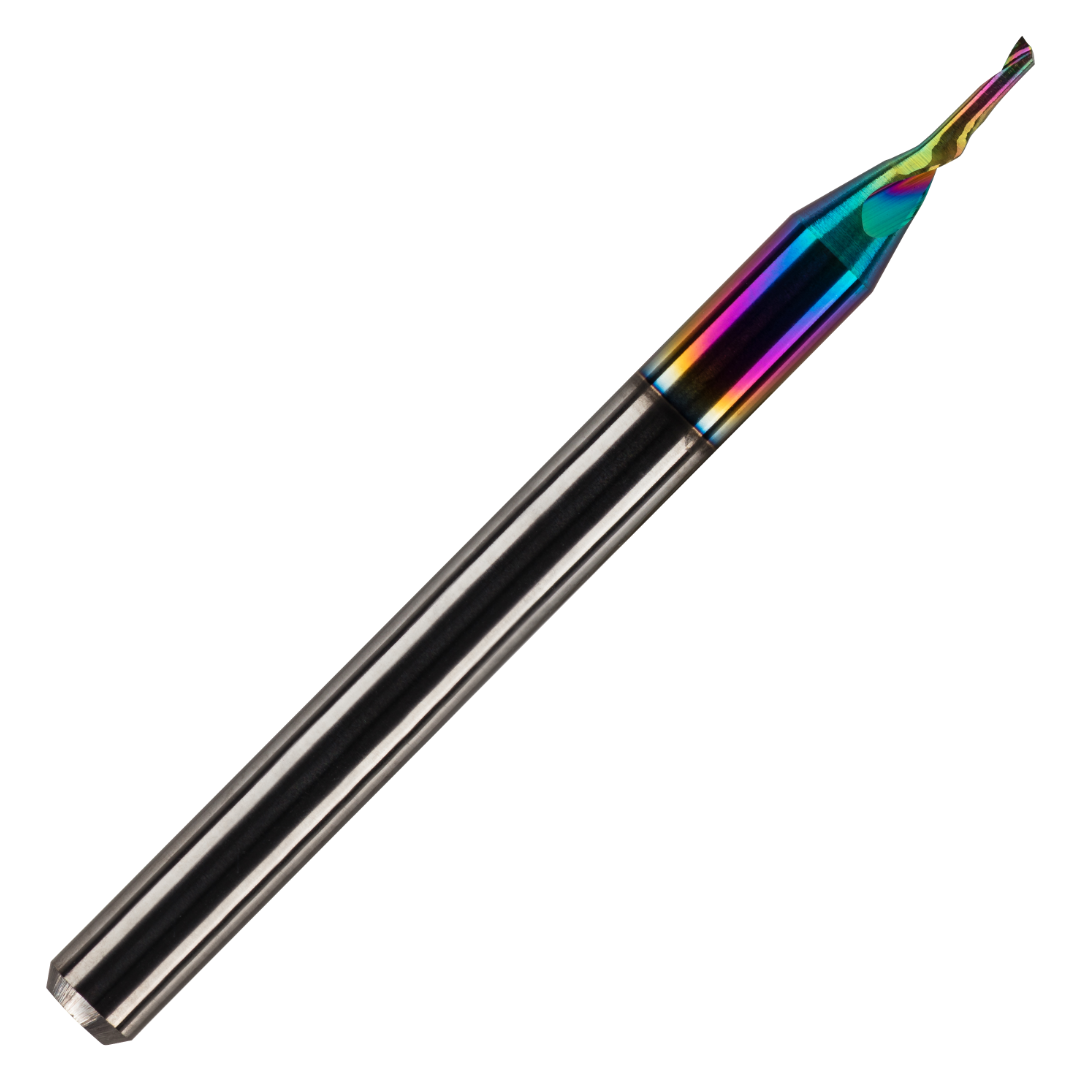

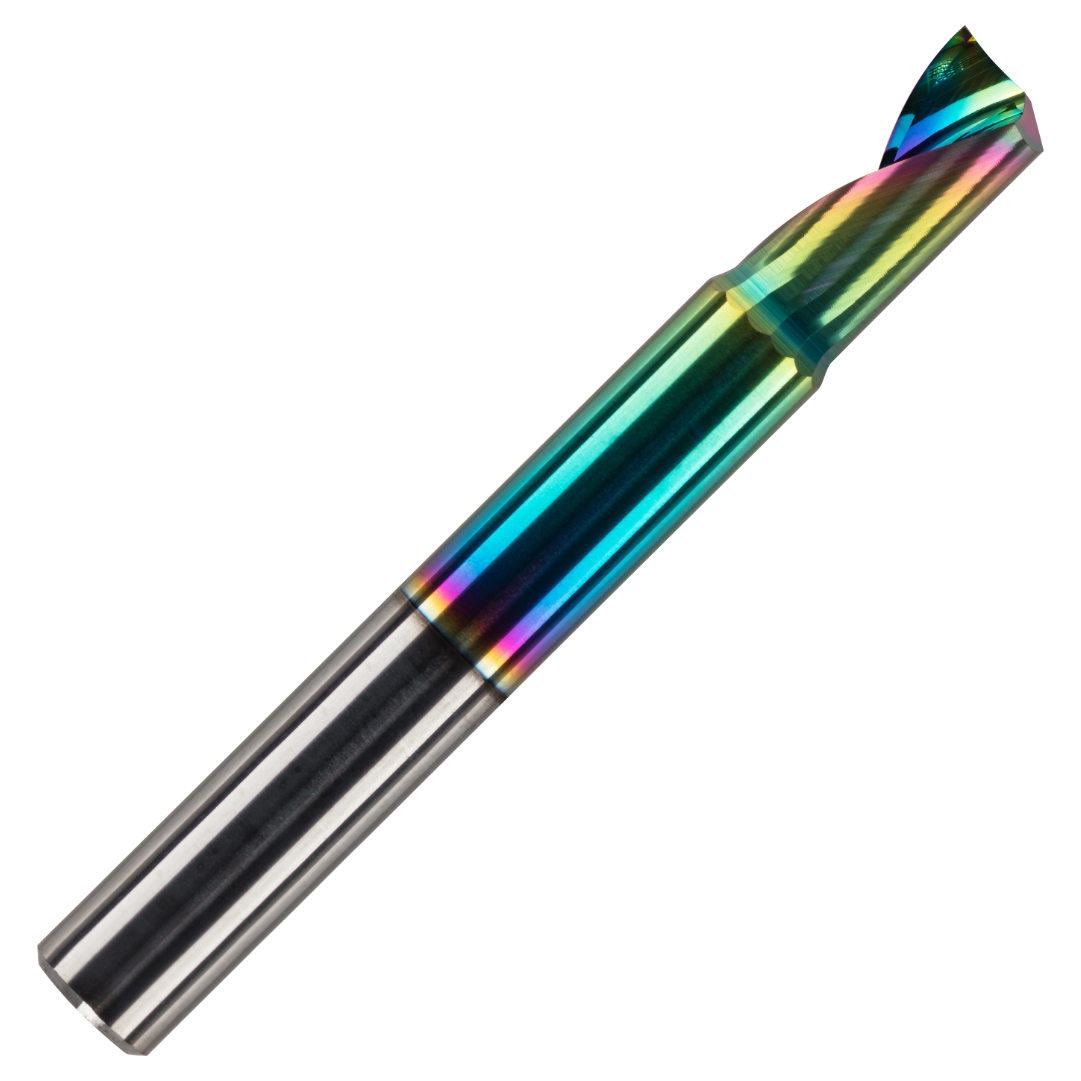

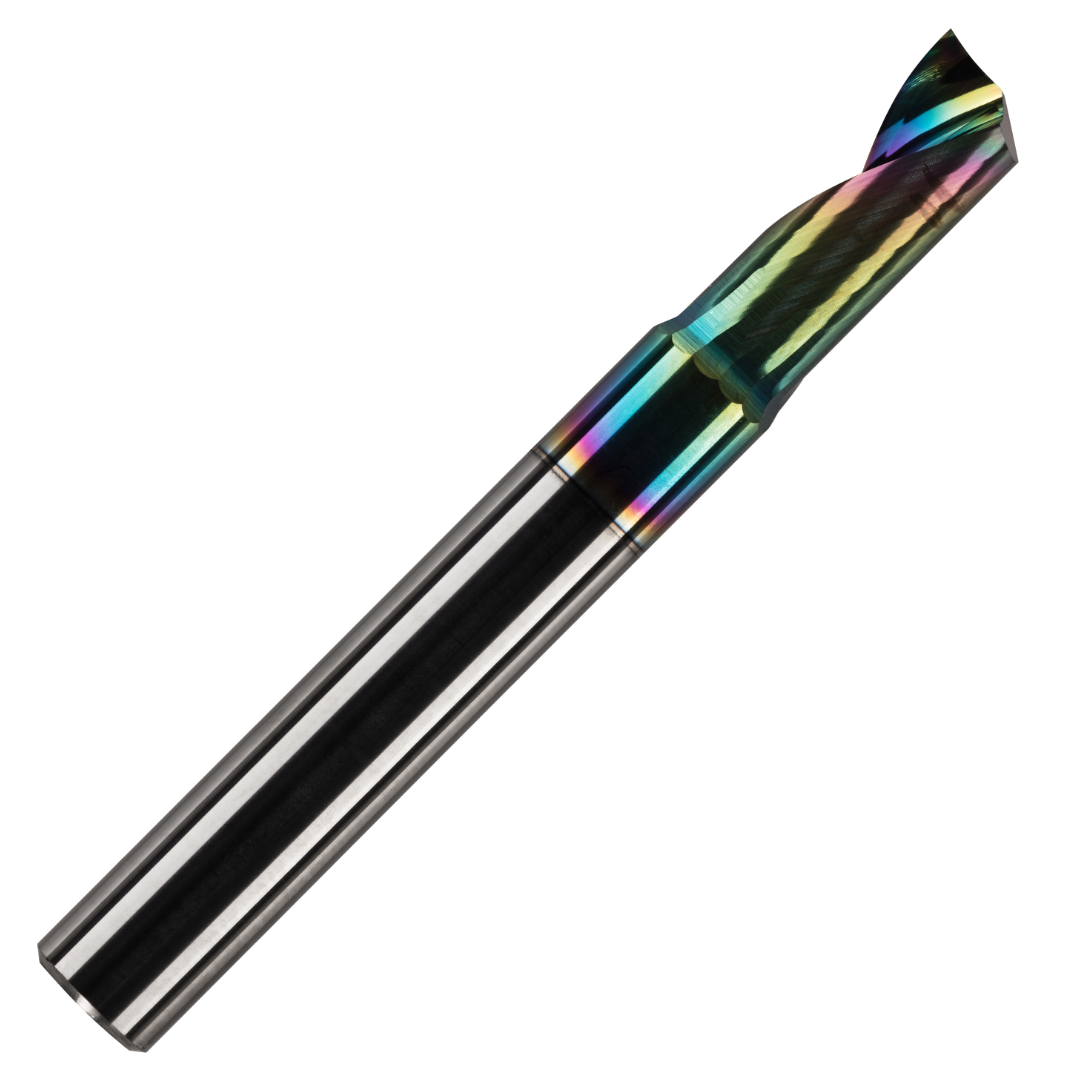

Solid Carbide Single Flute DLC Coated End Mill For Aluminium & ACM
Our DLC coated single flute endmills will give a mirror finish on aluminium and similar materials
Also for use on Brass, Copper, Gold, Magnesium, Alloy, Plastic, Acrylic, PVC and other Non-ferrous Metals.. Made from wear resistant Carbide for increased tool life.
Our DLC Diamond Like Carbon Coating can give upto 100% increased tool life. Can be used for dry cutting.
Full Dimensions -
| Cutting Diameter | Flute Length | Overall Length | Shank Diameter |

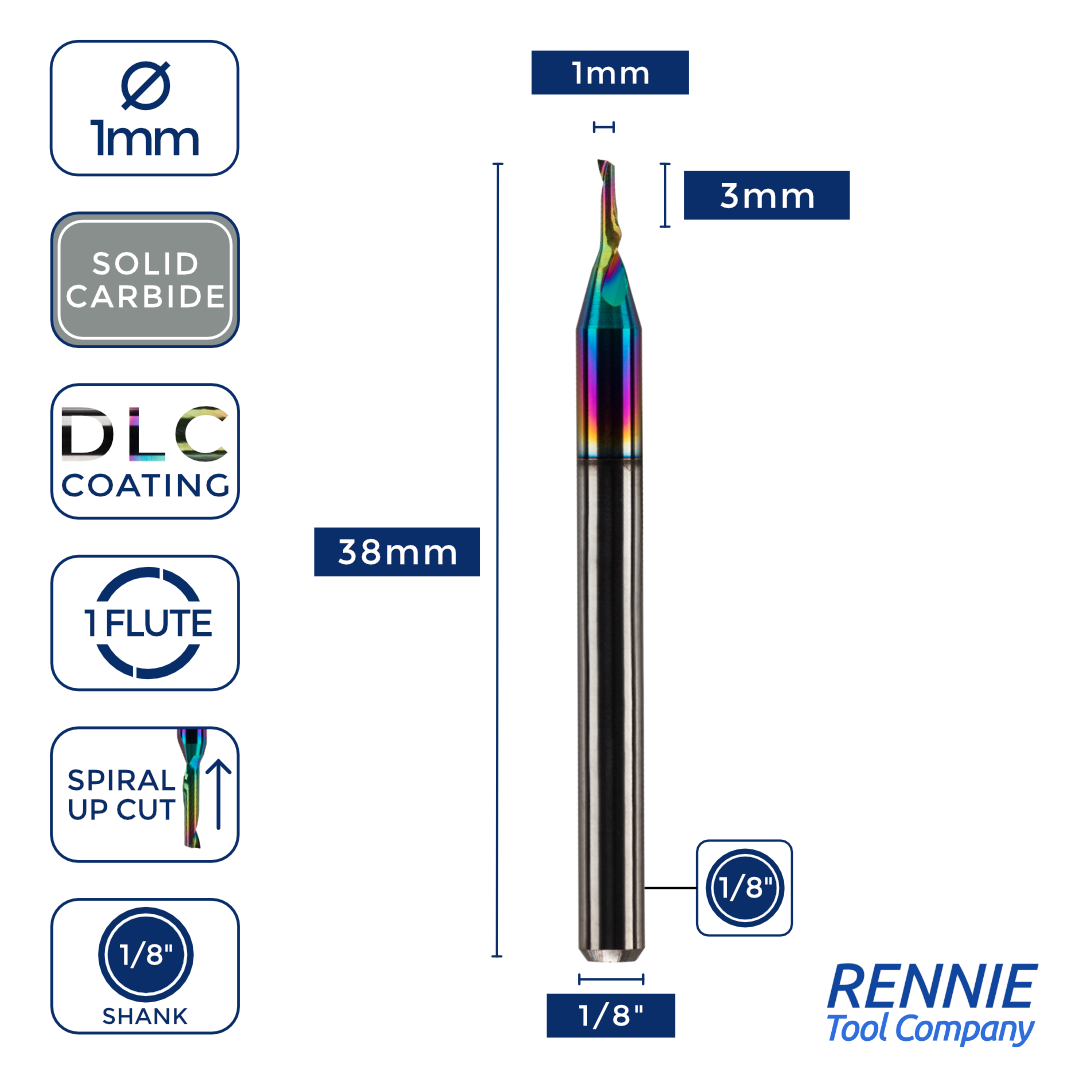

| 1mm | 3mm | 38mm | 3.175mm (1/8") |

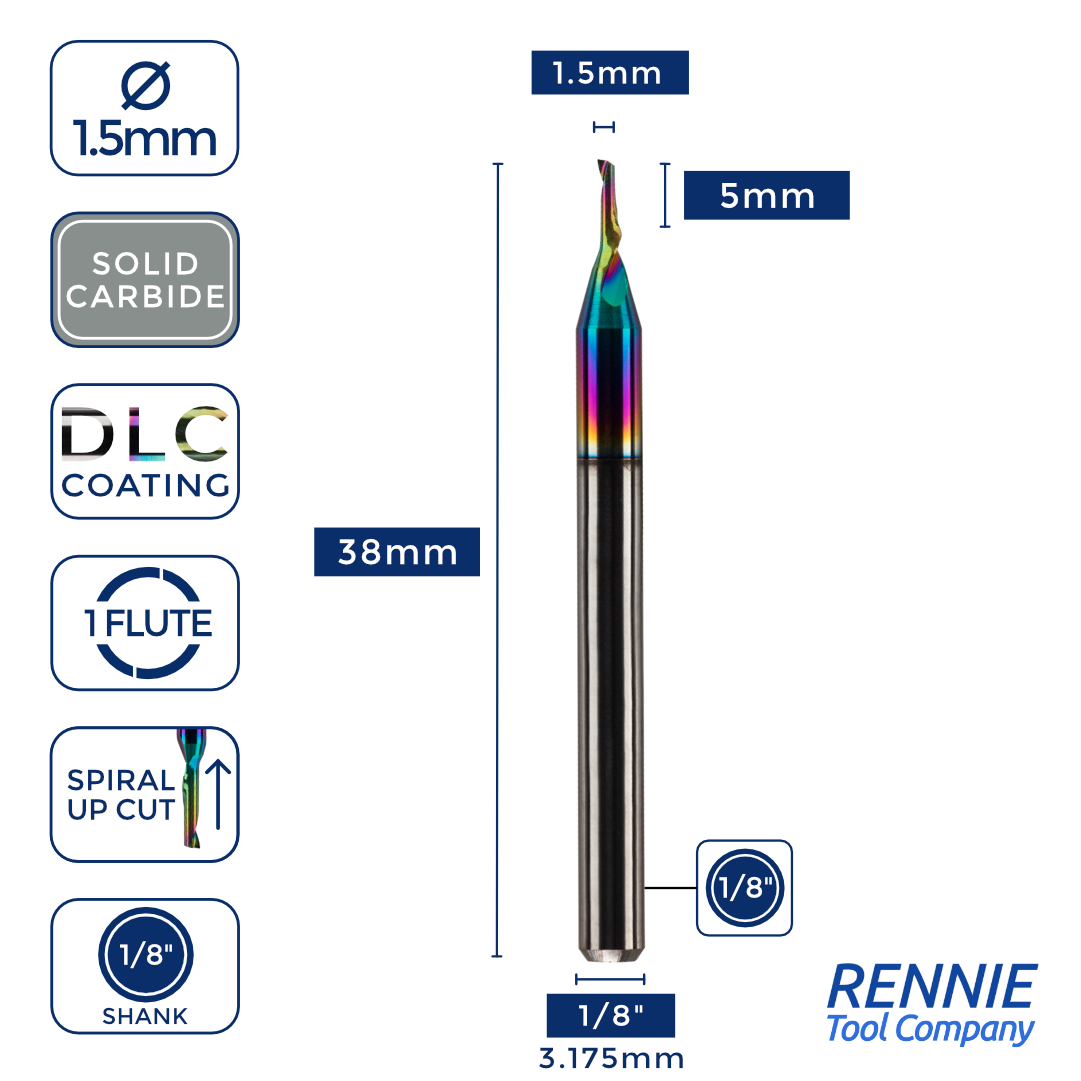

| 1.5mm | 5mm | 38mm | 3.175mm (1/8") |

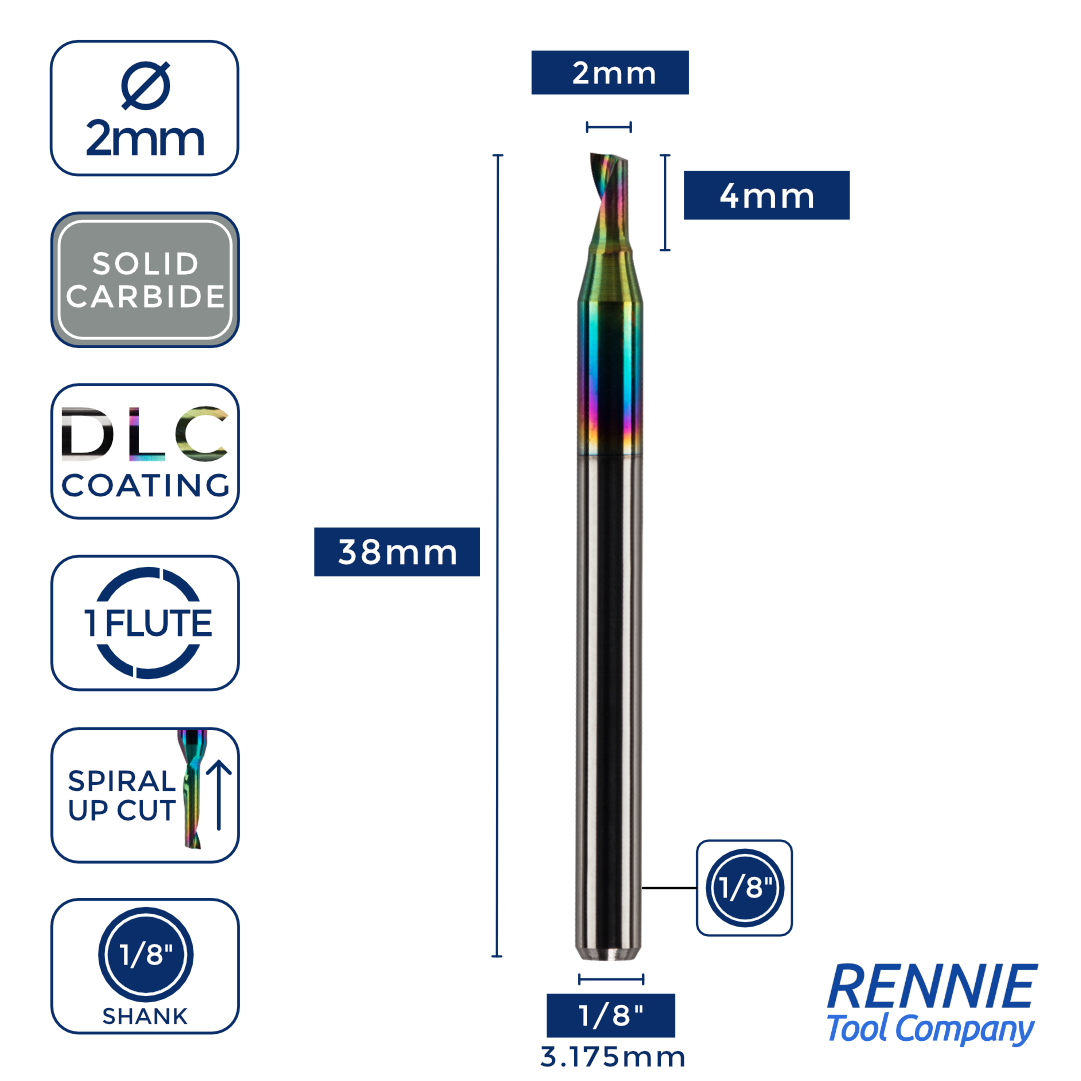

| 2mm | 4mm | 38mm | 3.175mm (1/8") |

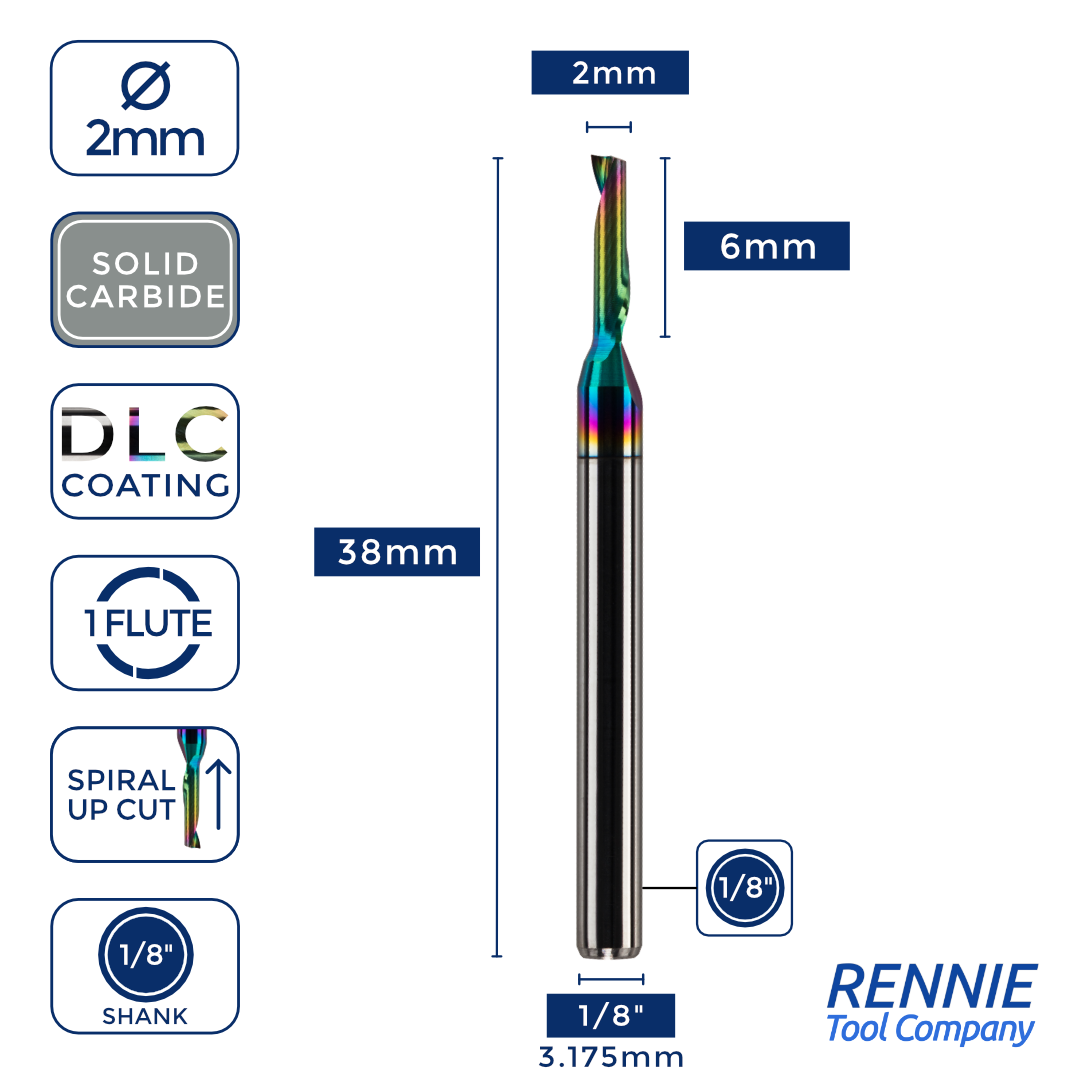

| 2mm | 6mm | 38mm | 3.175mm (1/8") |
| 2mm | 8mm | 38mm | 3.175mm (1/8") |
| 2.5mm | 4mm | 38mm | 3.175mm (1/8") |
| 2.5mm | 6mm | 38mm | 3.175mm (1/8") |
| 2.5mm | 8mm | 38mm | 3.175mm (1/8") |
| 3mm | 9mm | 38mm | 3mm |
| 3.175mm | 6mm | 38mm | 3.175mm (1/8") |
| 3.175mm | 7mm | 38mm | 3.175mm (1/8") |

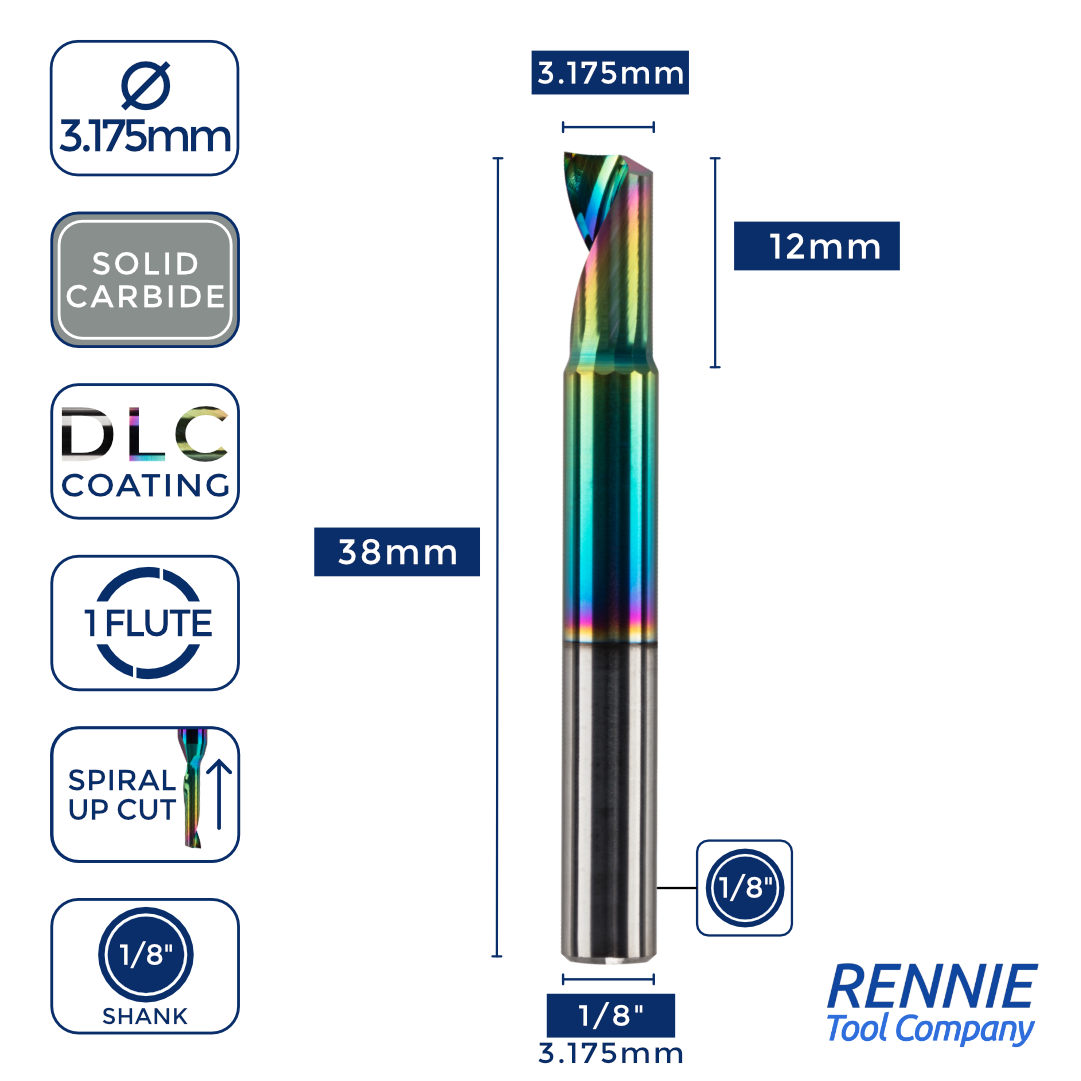

| 3.175mm | 12mm | 38mm | 3.175mm (1/8") |
| 3.175mm | 17mm | 38mm | 3.175mm (1/8") |
| 4mm | 8mm | 45mm | 4mm |
| 4mm | 10mm | 45mm | 4mm |
| 4mm | 12mm | 45mm | 4mm |
| 4mm | 15mm | 45mm | 4mm |
| 4mm | 17mm | 45mm | 4mm |

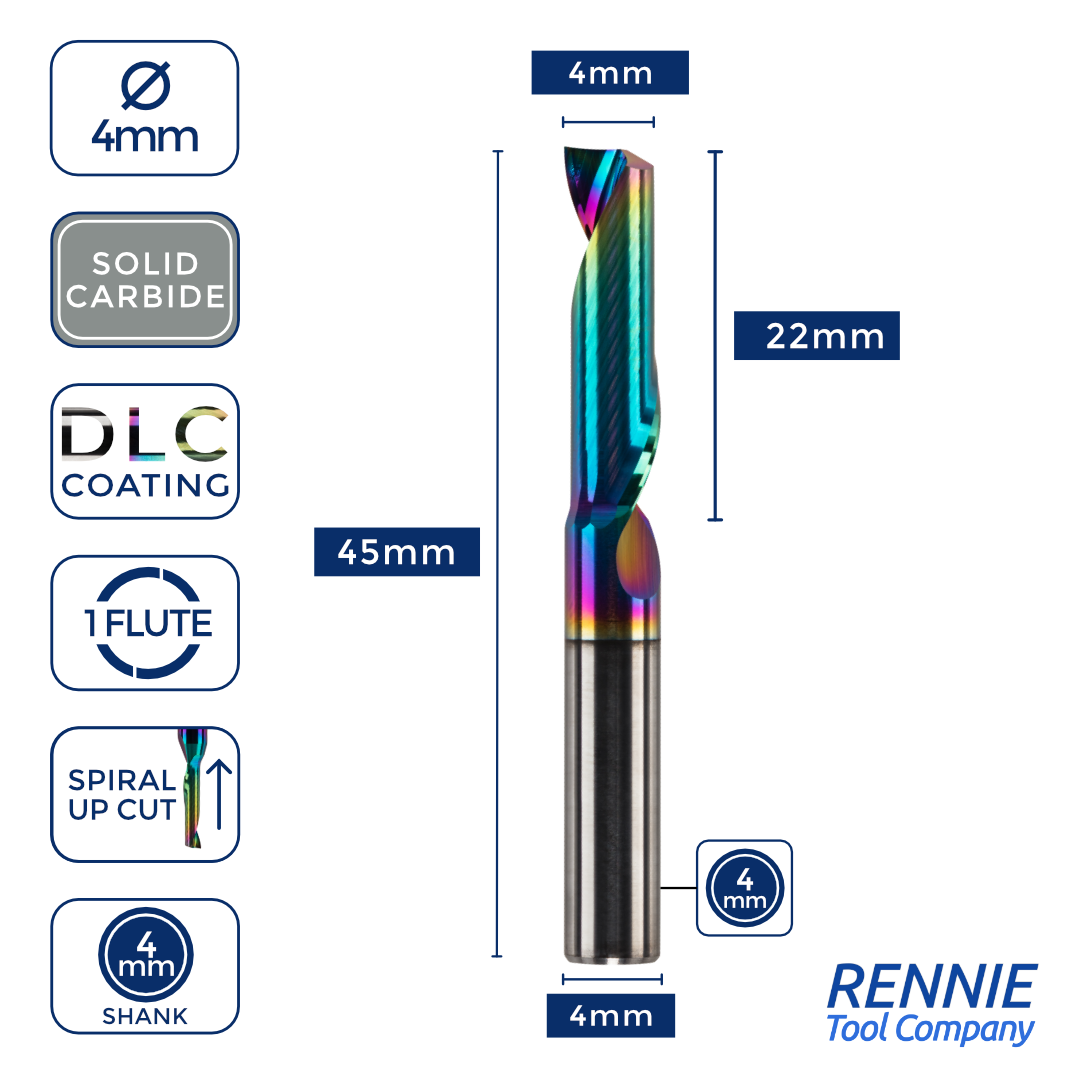

| 4mm | 22mm | 45mm | 4mm |
| 5mm | 17mm | 50mm | 5mm |
| 6mm | 12mm | 50mm | 6mm |

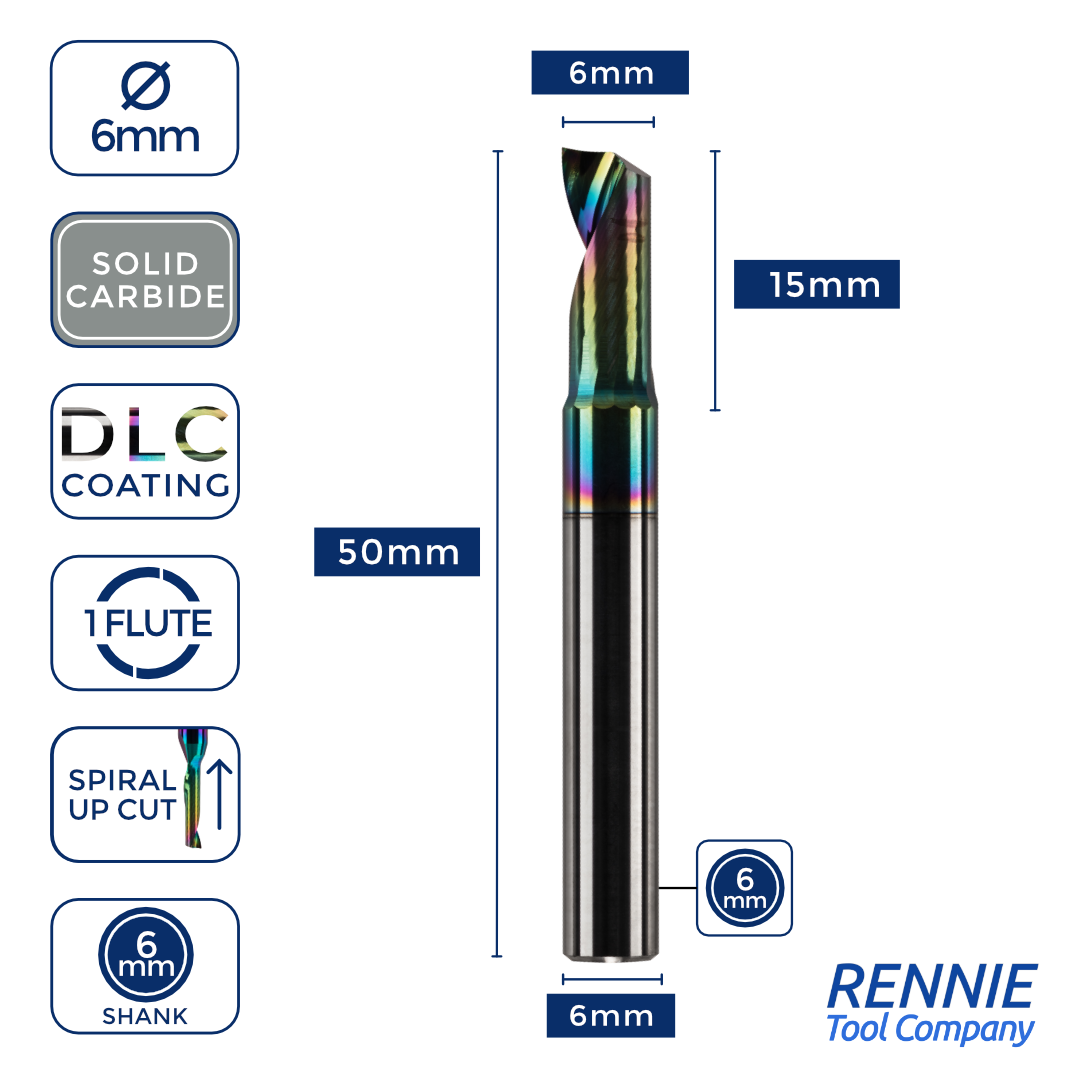

| 6mm | 15mm | 50mm | 6mm |
| 6mm | 17mm | 50mm | 6mm |
| 6mm | 22mm | 50mm | 6mm |
| 8mm | 22mm | 60mm | 8mm |
| 8mm | 25mm | 60mm | 8mm |

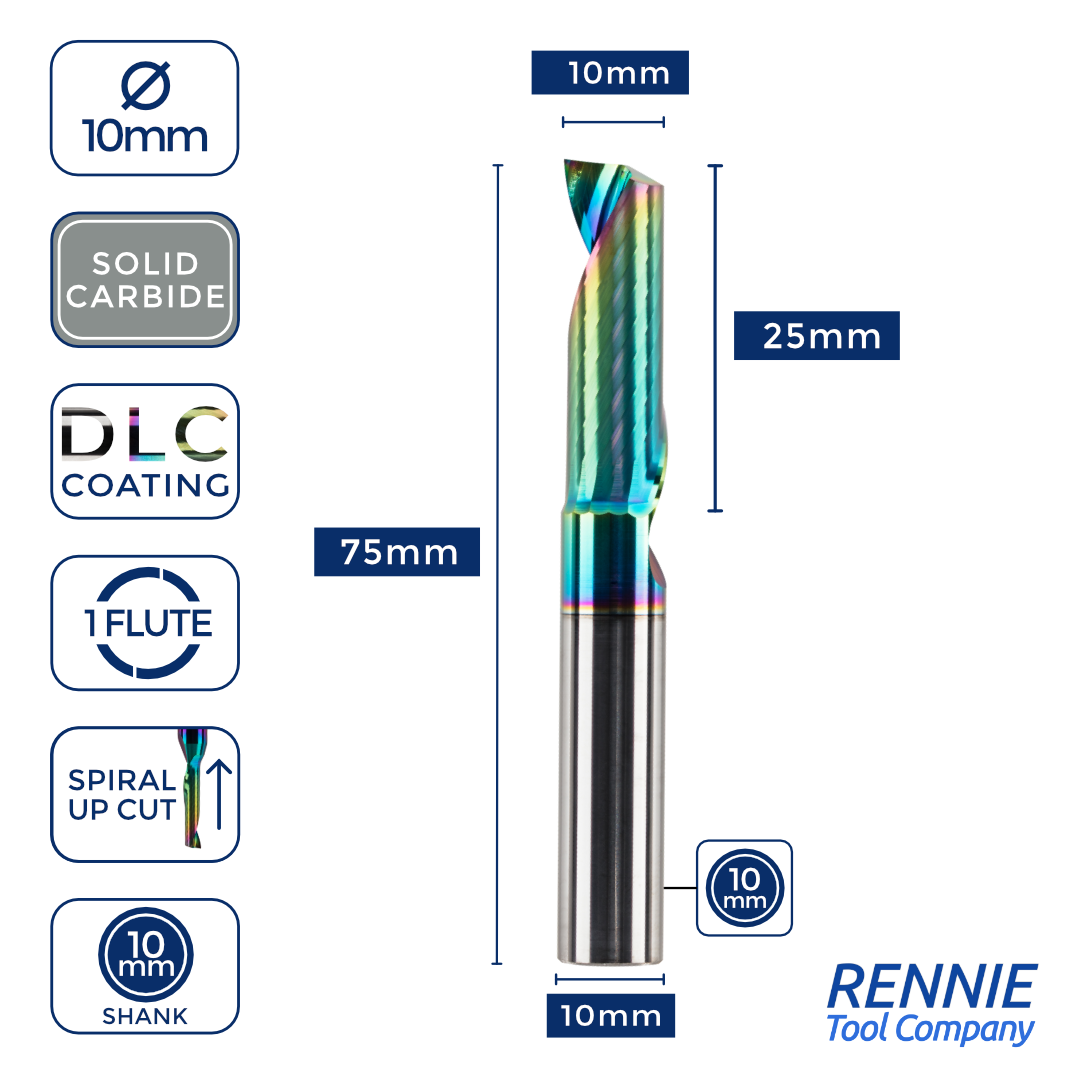

| 10mm | 25mm | 75mm | 10mm |
| 10mm | 32mm | 75mm | 10mm |

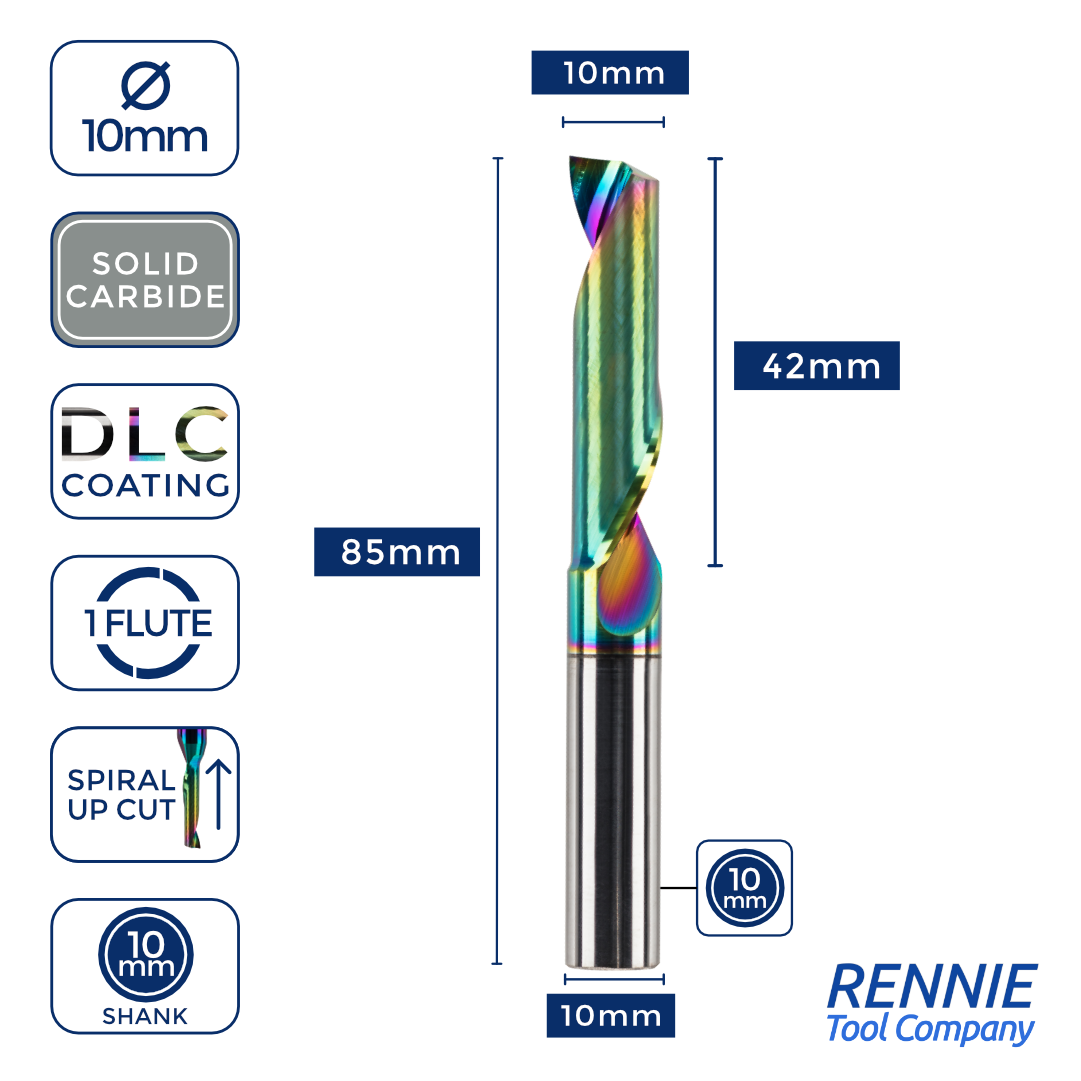

| 10mm | 42mm | 85mm | 10mm |
| 12mm | 35mm | 75mm | 12mm |
| 12mm | 42mm | 80mm | 12mm |
